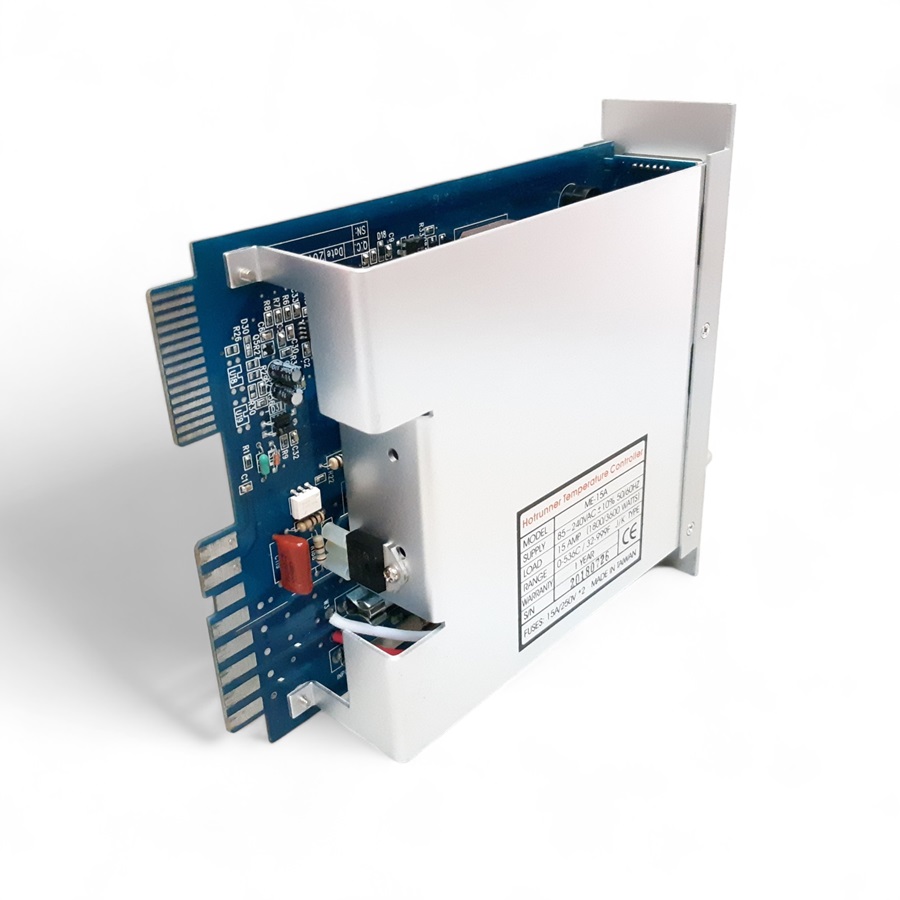

ME-15A PID Module
Generally referred to as “temperature control card”, the temperature control module consists of a printed IC board, a CPU, various kinds of electronic components and an aluminum plate. The temperature control module handles many important jobs such as power output, signal sensing and temperature control during the heating of hot runner system.
Specification:
▣ Power input:85~240VAC±10%
▣ Power frequency:50~60HZ
▣ Work temperature:-10~55℃
▣ Work humidity:10~80%RH
▣ Storage temperature:-20~70℃
▣ Thermocouple:0~534℃
▣ Sample rate:0.1S
▣ Control accuracy:±1℃
▣ Output watt:3600W (Max)
▣ Fuse:15A/240V , 2 pcs
▣ Power frequency:50~60HZ
▣ Work temperature:-10~55℃
▣ Work humidity:10~80%RH
▣ Storage temperature:-20~70℃
▣ Thermocouple:0~534℃
▣ Sample rate:0.1S
▣ Control accuracy:±1℃
▣ Output watt:3600W (Max)
▣ Fuse:15A/240V , 2 pcs
Specification:
▣ Power input:85~240VAC±10%
▣ Power frequency:50~60HZ
▣ Work temperature:-10~55℃
▣ Work humidity:10~80%RH
▣ Storage temperature:-20~70℃
▣ Thermocouple:0~534℃
▣ Sample rate:0.1S
▣ Control accuracy:±1℃
▣ Output watt:3600W (Max)
▣ Fuse:15A/240V , 2 pcs
▣ Power frequency:50~60HZ
▣ Work temperature:-10~55℃
▣ Work humidity:10~80%RH
▣ Storage temperature:-20~70℃
▣ Thermocouple:0~534℃
▣ Sample rate:0.1S
▣ Control accuracy:±1℃
▣ Output watt:3600W (Max)
▣ Fuse:15A/240V , 2 pcs
