Every hot runner system manufacturer maybe has its distinguished method of arranging wires. No matter how it is arranged, if the injection molding factory has already purchased the temperature controller, our engineers will install the system according to the current arrangement with output of the temperature controller.
Without the consideration of the customized arrangements with output of temperature controller, we briefly illustrate some of the most common of arrangement rules with systems in the market.

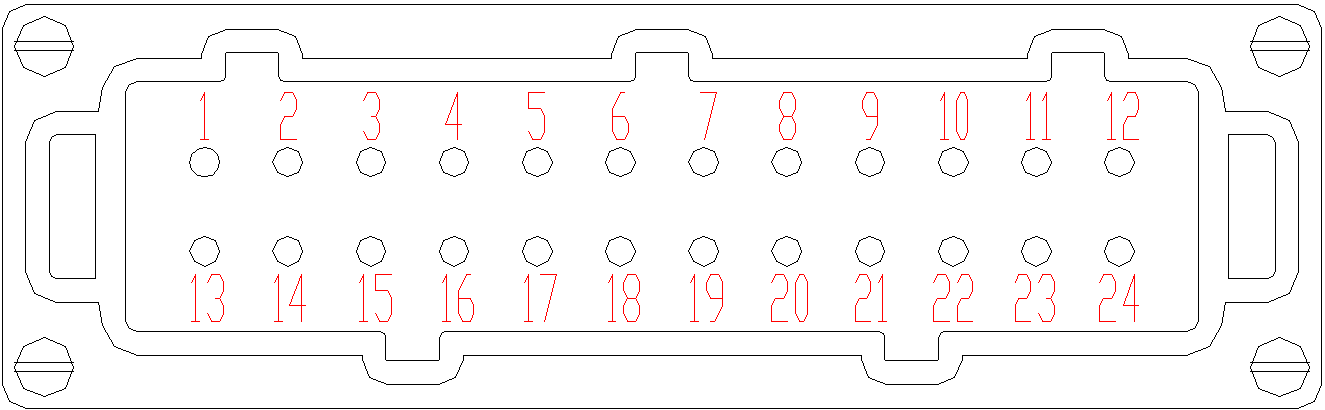

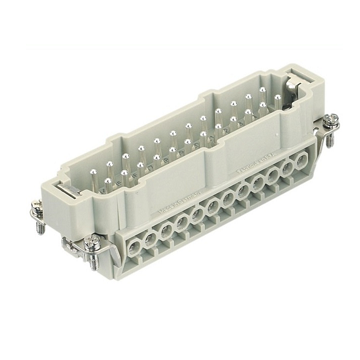

Ｗe are referring the arrangement rules on the injection mold. The following examples is illustrated by the 24 pole insert.

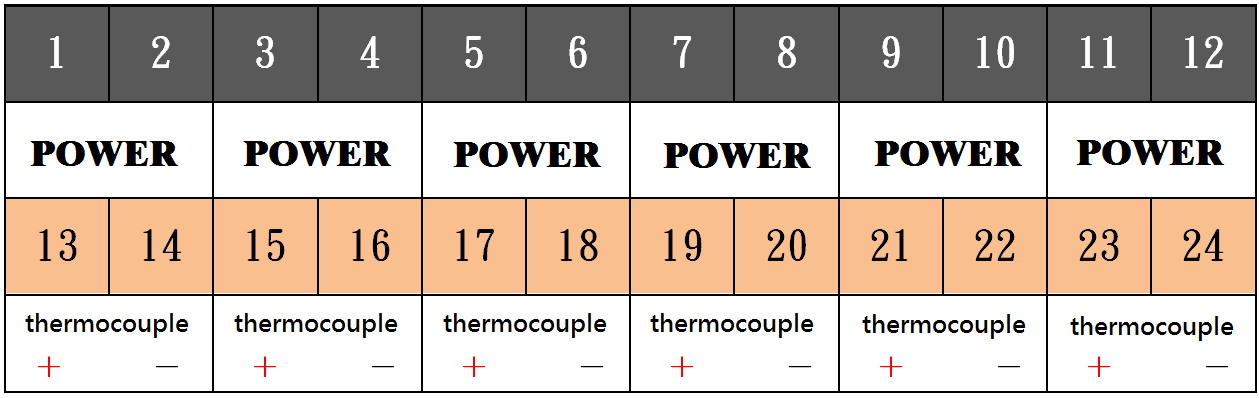

A. Most common wiring rules in the TAIWAN.
1 & 2 = POWER
13 & 14 = + thermocouple -

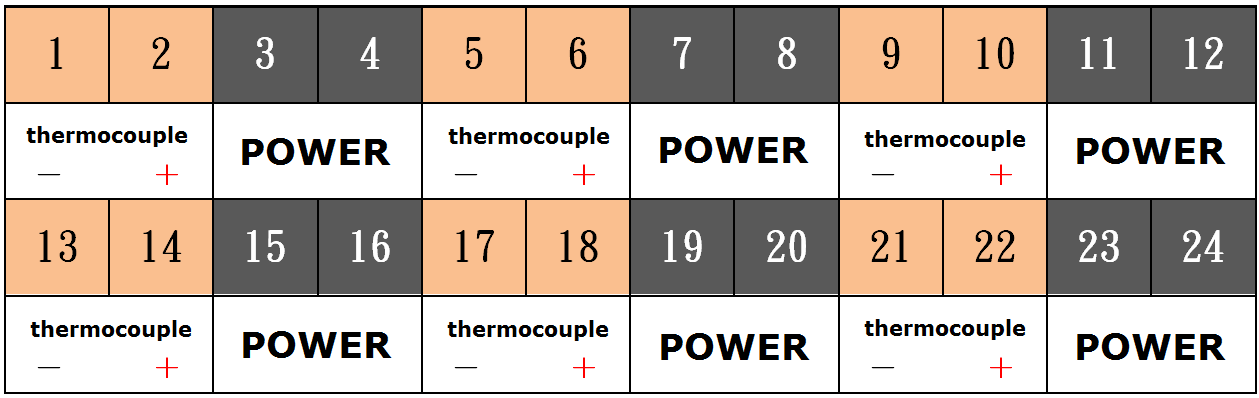

B. Other wiring rules of Americas & Europe, the following examples with wiring diagram of HEITEC from Germany.
1 & 2 = - thermocouple +
3 & 4 = POWER

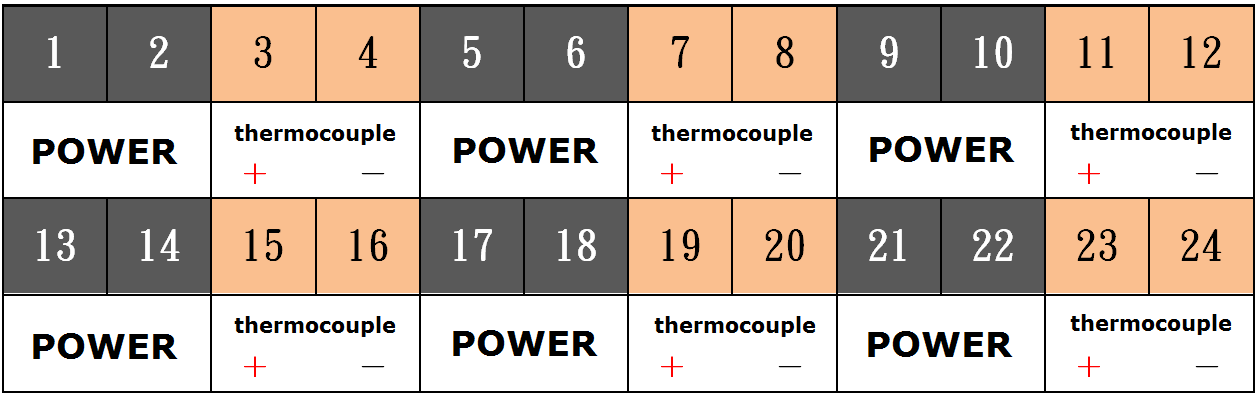

C. Other wiring rules of Asia, the following examples with wiring diagram of YUDO from Korea.
1 & 2 = POWER
3 & 4 = + thermocouple -
