1 Zone PID Controller
Specification：
▣ Power frequency：50~60HZ
▣ Work temperature：-10~55℃
▣ Work humidity：10~80%RH
▣ Storage temperature：-20~70℃
▣ Thermocouple：0~534℃
▣ Sample rate：0.1S
▣ Control accuracy：±1℃
▣ Output watt：3600W (Max)
▣ Fuse：15A/240V , 2 pcs
Specification：
▣ Power frequency：50~60HZ
▣ Work temperature：-10~55℃
▣ Work humidity：10~80%RH
▣ Storage temperature：-20~70℃
▣ Thermocouple：0~534℃
▣ Sample rate：0.1S
▣ Control accuracy：±1℃
▣ Output watt：3600W (Max)
▣ Fuse：15A/240V , 2 pcs
More Info：
▣Dual lines LED display.
▣Fuse break indicator.
▣PID auto temperature control.
▣Auto/Manual Function.
▣Selectable two thermocouple types.(J or K)
▣Selectable two temperature scales.(℃ or ℉)
▣Thermocouple break and inverse detect.
▣Auto save the temperature value after adjustment.
▣Soft start function can make humidity and extend heater life.

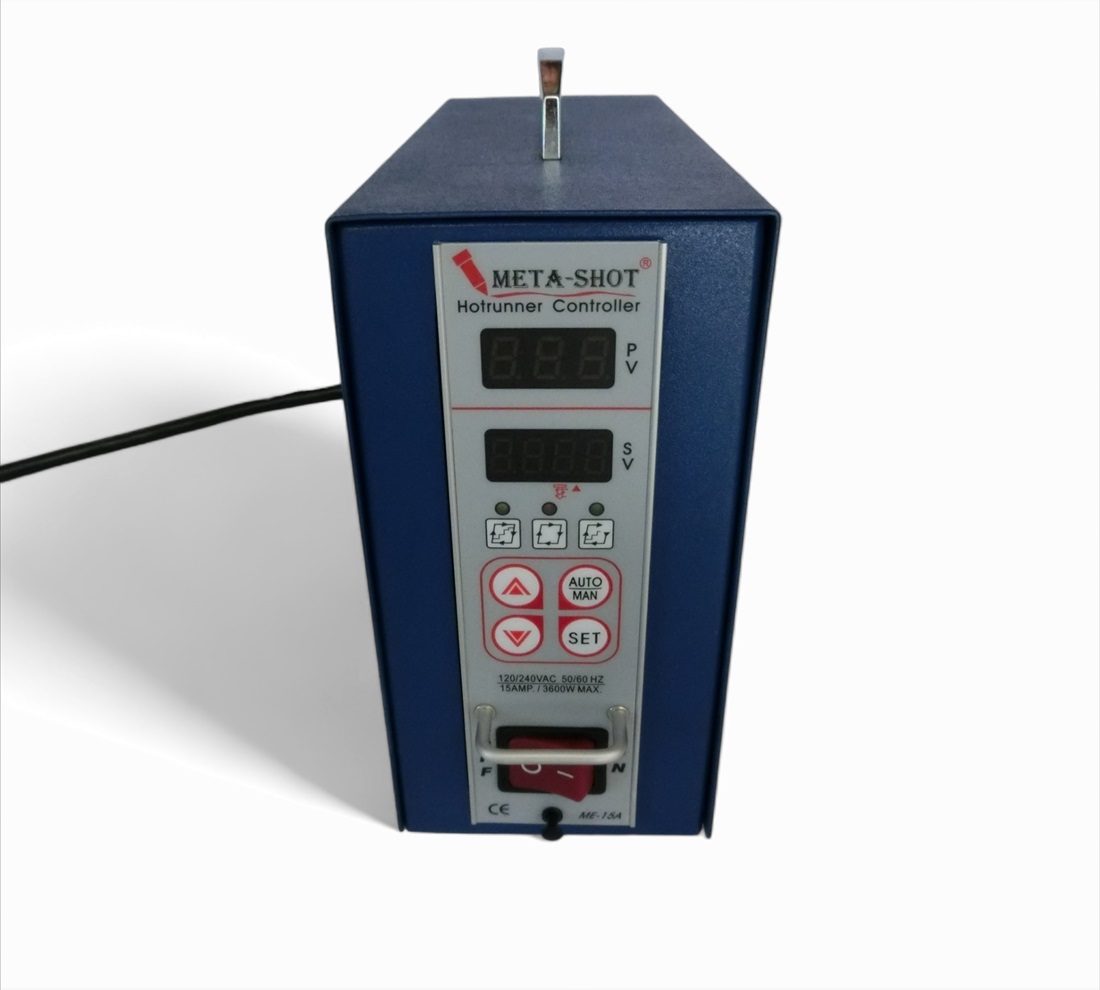

A succinct and easy to understand control interface without complicated and excessive buttons and indicator lights.

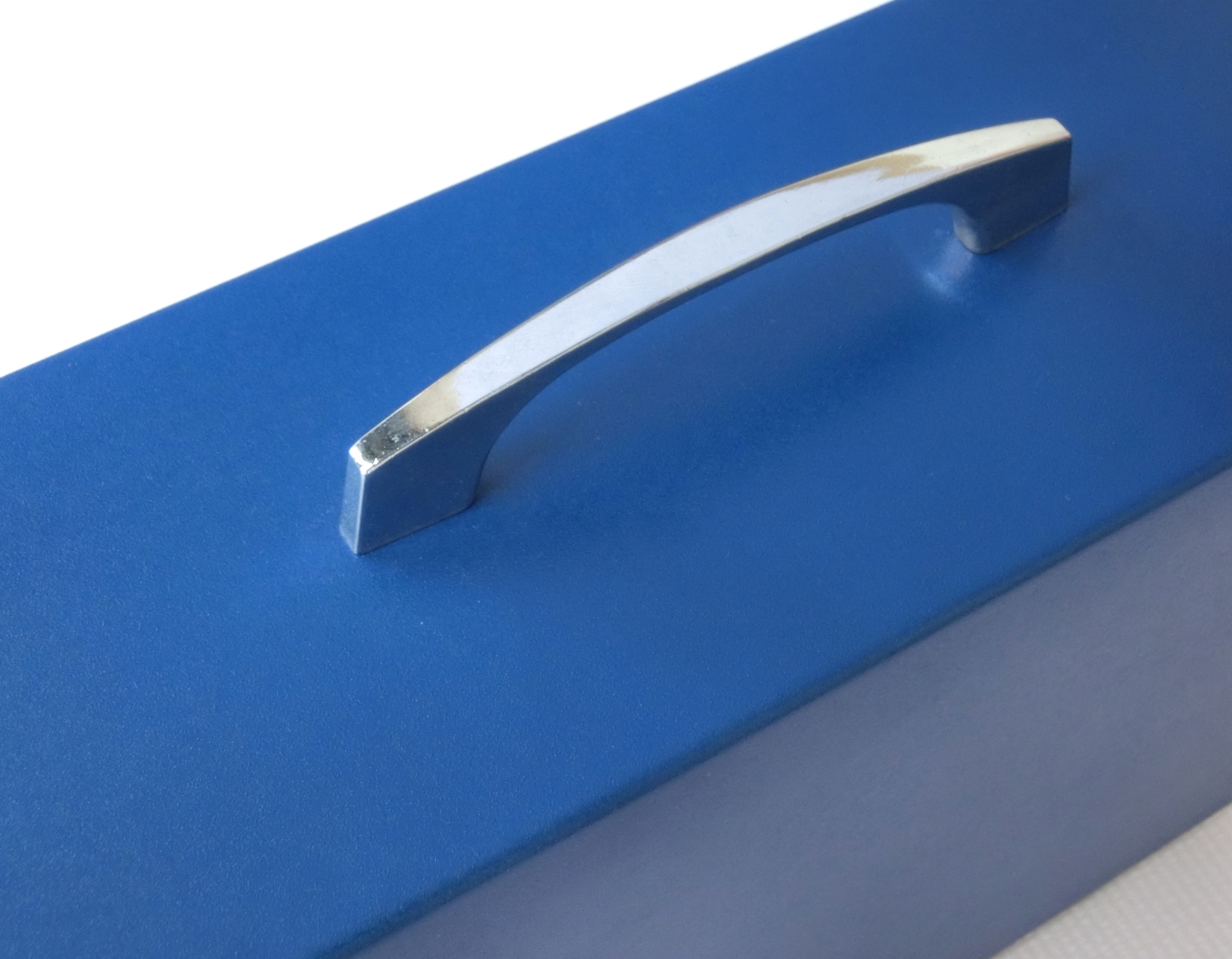

Exquisite and sturdy chrome-plated metal handle.

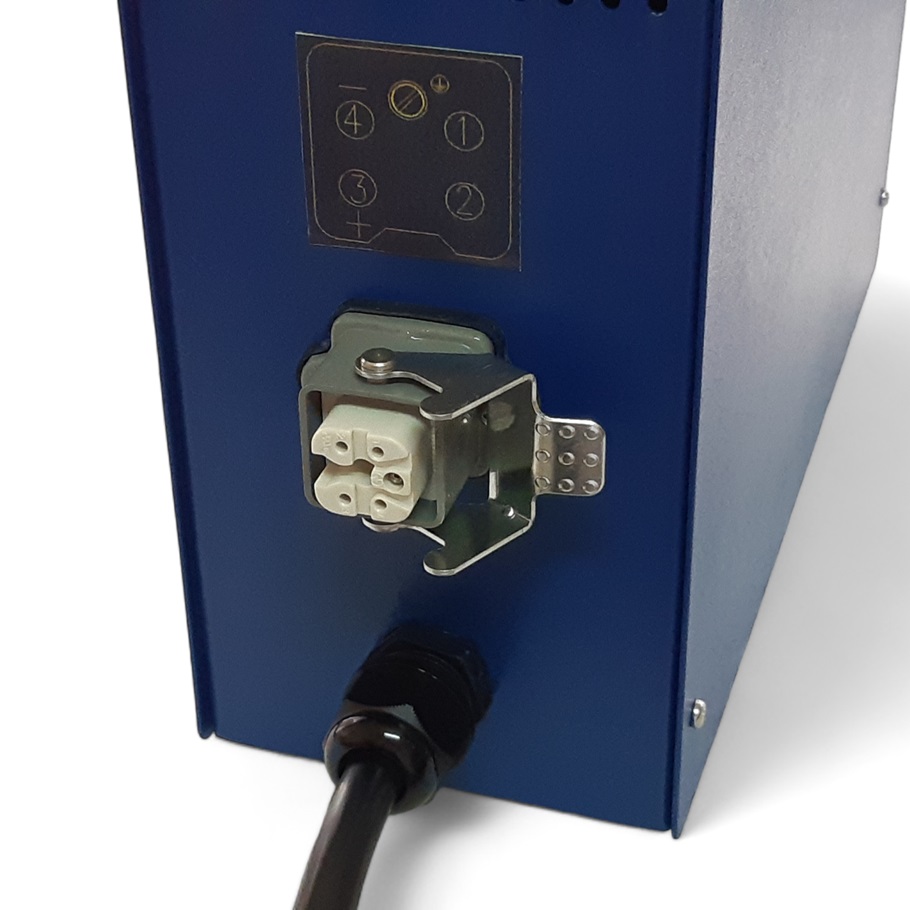

Hot runner wiring with diagrams.

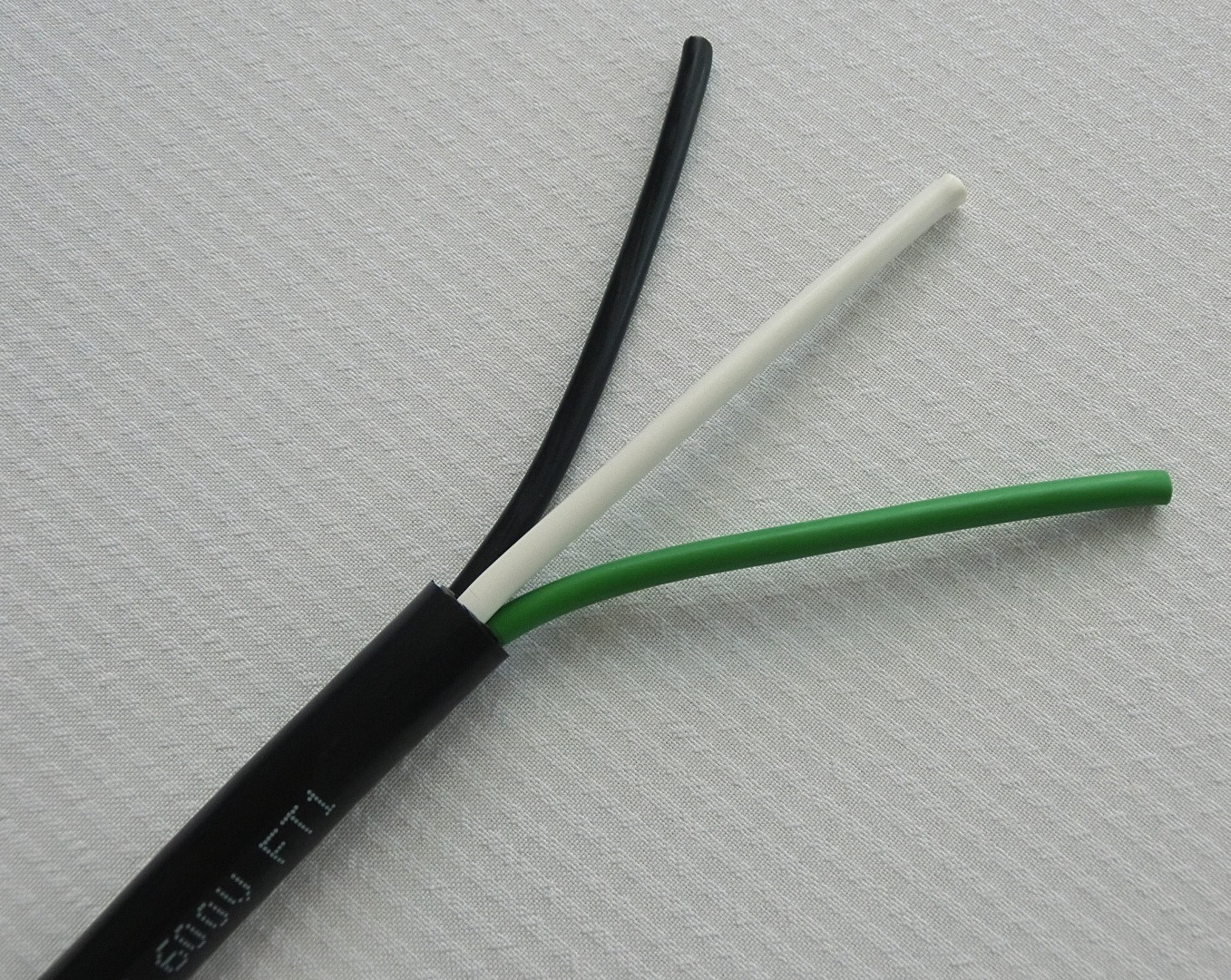

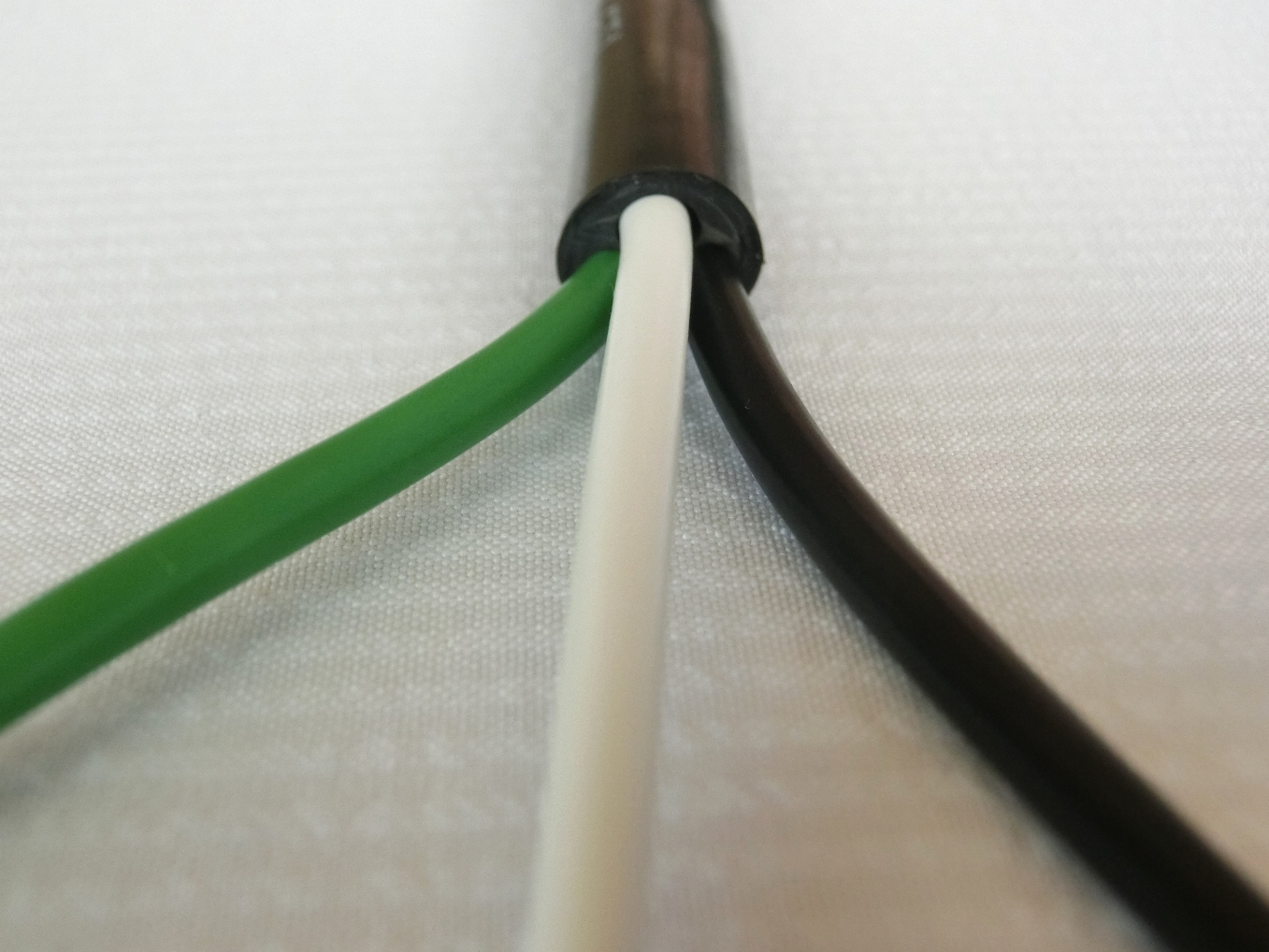

The application of high-priced and correctly safe black-white-green UL power cords differs from the erroneous use of black-white-red cords by other manufacturers. In the correct application, one of the three colored wires serves as the ground, while the black and white wires are used for power. However, other manufacturers mistakenly use one of the three colored wires, such as the red wire, as ground, leading users to habitually connect black, white, and red wires to a three-phase unfused switch. This ultimately results in electrical leakage from the enclosure.
*Power Cable Specification : 14AWG * 3C / 105℃ / 600V
