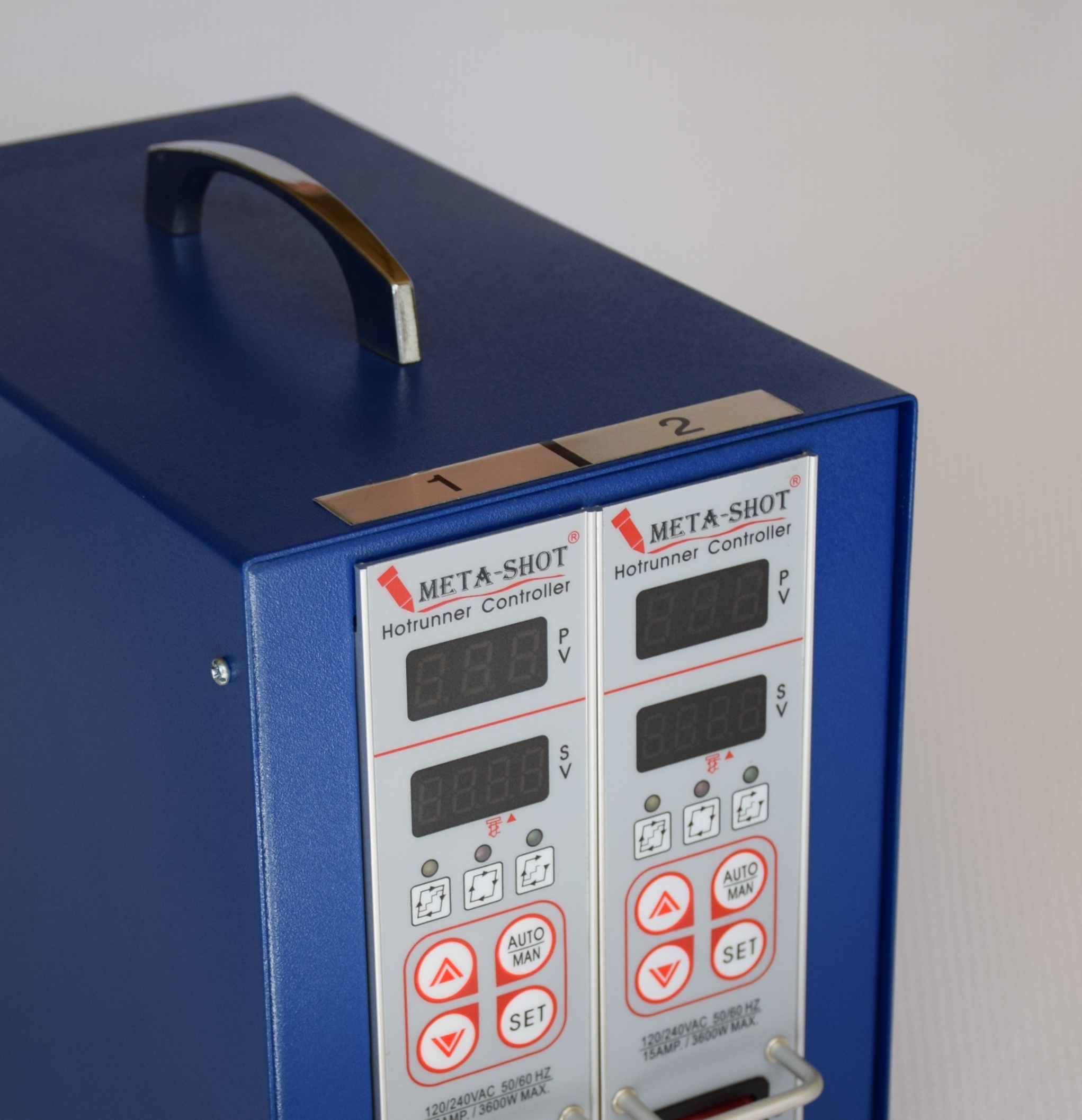

2 Zone PID Controller
Specification：
▣ Power frequency：50~60HZ
▣ Work temperature：-10~55℃
▣ Work humidity：10~80%RH
▣ Storage temperature：-20~70℃
▣ Thermocouple：0~534℃
▣ Sample rate：0.1S
▣ Control accuracy：±1℃
▣ Output watt：3600W (Max)
▣ Fuse：15A/240V , 2 pcs
Specification：
▣ Power frequency：50~60HZ
▣ Work temperature：-10~55℃
▣ Work humidity：10~80%RH
▣ Storage temperature：-20~70℃
▣ Thermocouple：0~534℃
▣ Sample rate：0.1S
▣ Control accuracy：±1℃
▣ Output watt：3600W (Max)
▣ Fuse：15A/240V , 2 pcs
More Info：
●Dual lines LED display.
●Fuse break indicator.
●PID auto temperature control.
●Auto/Manual Function.
●Selectable two thermocouple types.(J or K)
●Selectable two temperature scales.(℃ or ℉)
●Thermocouple break and inverse detect.
●Auto save the temperature value after adjustment.
●Soft start function could make humidity and extend heater life.
Thin type aluminum veneer (thickness 0.4mm) , rarely seen in the industry; applied with 3M adhesive for water proof, oil-resistance and heat endurance required for processing in the plastic injection plant. The aluminum veneer never falls off and fades in color.

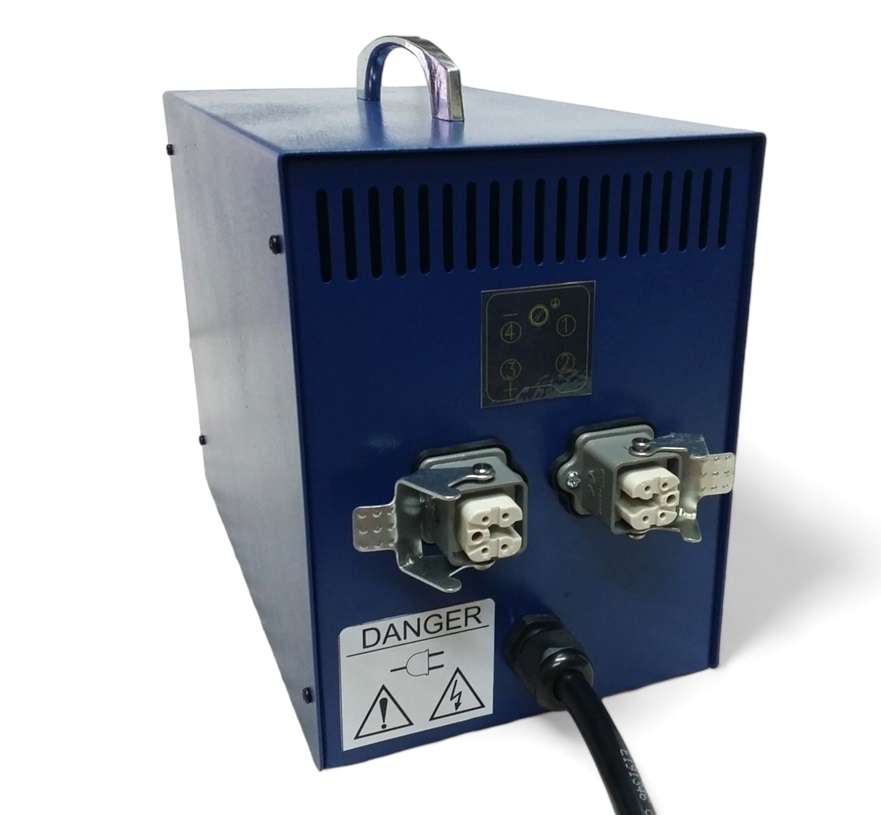

Two 4p+G base female connectors for temperature control. The configuration can be customized based on the clients’ needs. For example, we can mount bases for 10p female connectors.

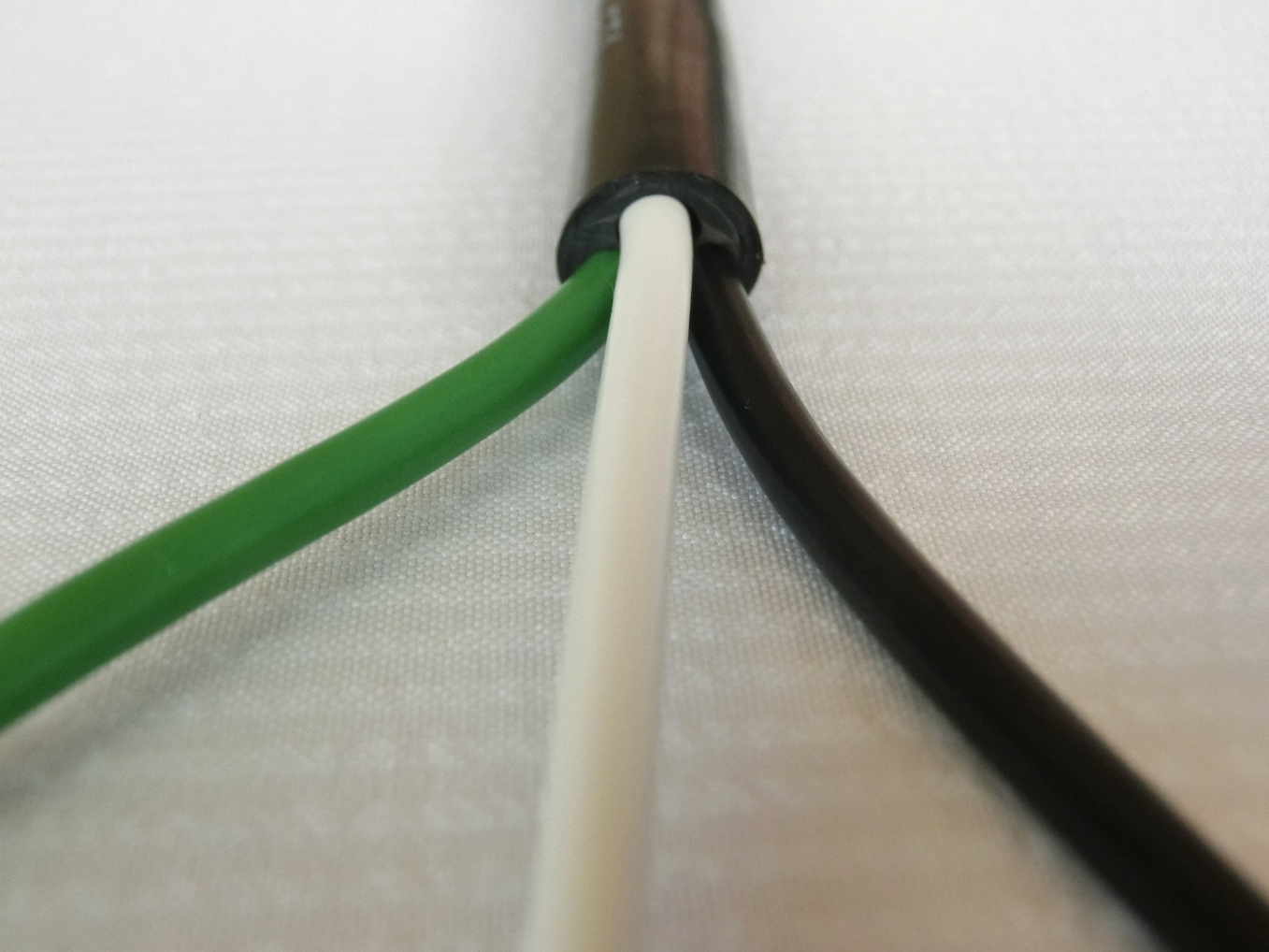

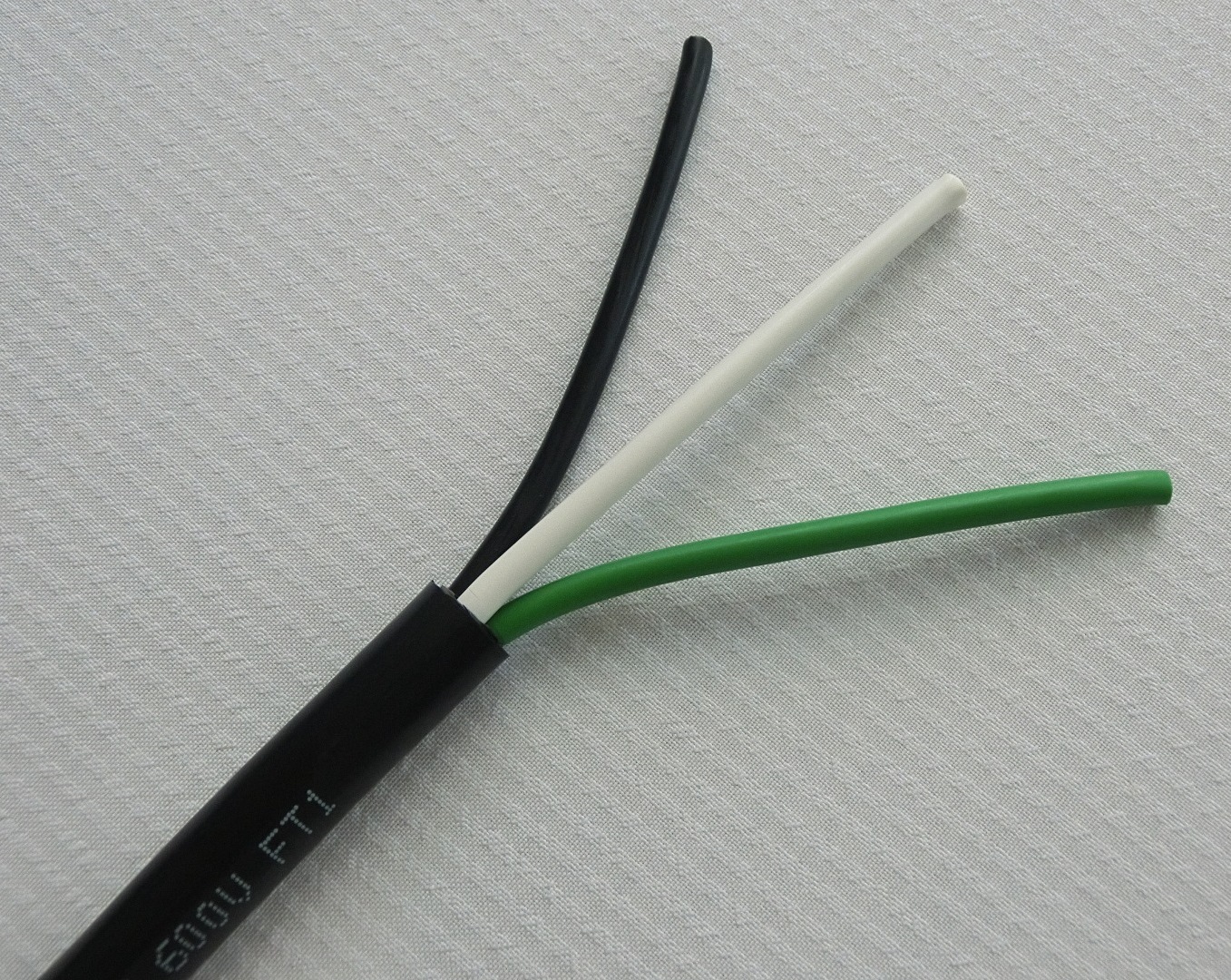

▣High-single price and correct and safe black,white and green power wire application with UL Classified which is different from the wrong application by other manufacturers using black, white and red wires. One of the wires is used for grounding, which causes the user to habitually connect the red, white and black wires to the three-phase non-fused switch, which ultimately leads to current leakage into the mainframe.
*Power Cable Specification : 14AWG * 3C / 105℃ / 600V
