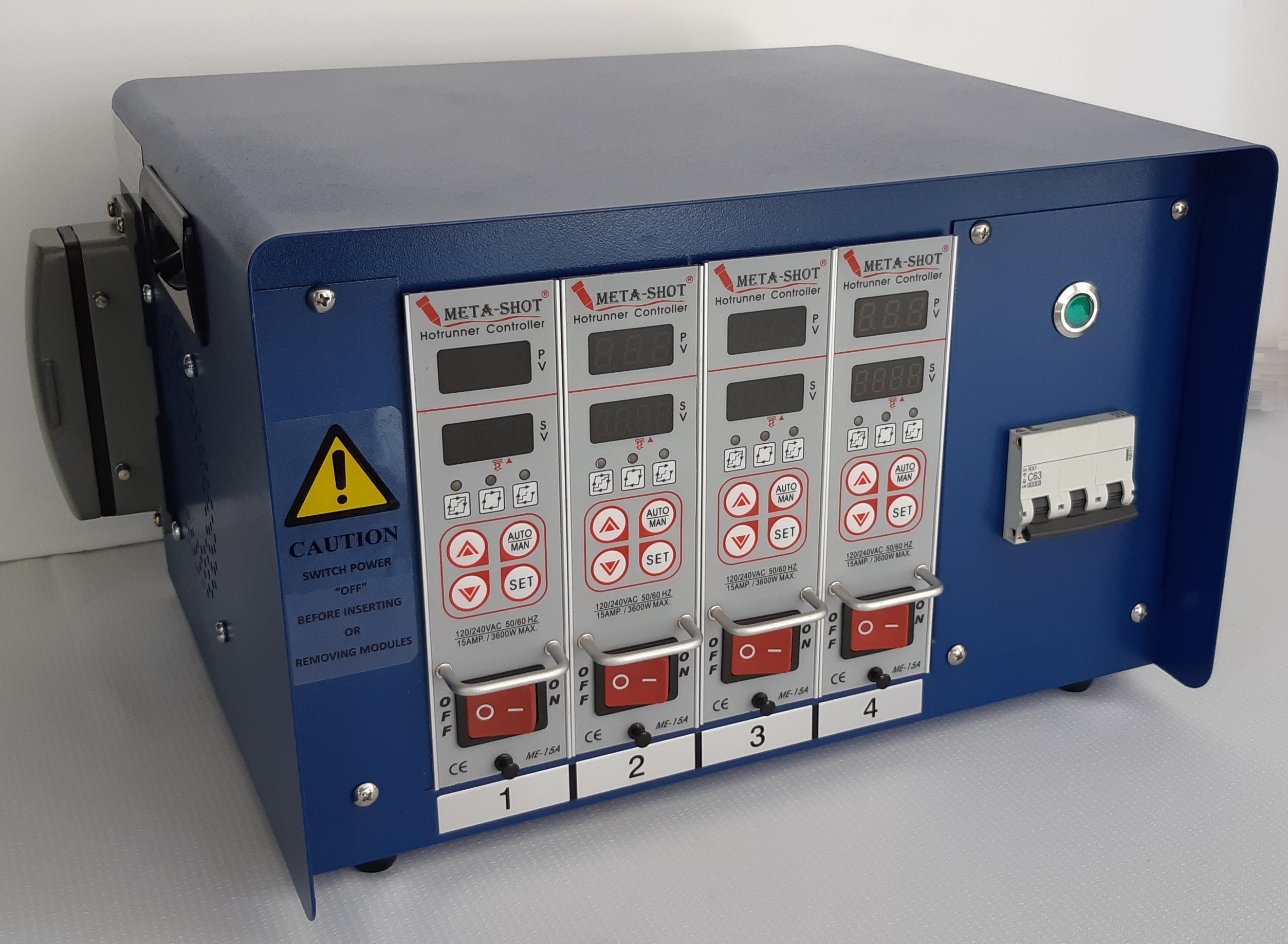

4 Zone PID Controller
The ME-15A PID controller suitable for 4 temperature area of hot runner systems.
Specification：
▣ Power input：85~240VAC±10%
▣ Power frequency：50~60HZ
▣ Work temperature：-10~55℃
▣ Work humidity：10~80%RH
▣ Storage temperature：-20~70℃
▣ Thermocouple：0~534℃
▣ Sample rate：0.1S
▣ Control accuracy：±1℃
▣ Output watt：3600W (Max)
▣ Fuse：15A/240V , 2 pcs
▣ Power frequency：50~60HZ
▣ Work temperature：-10~55℃
▣ Work humidity：10~80%RH
▣ Storage temperature：-20~70℃
▣ Thermocouple：0~534℃
▣ Sample rate：0.1S
▣ Control accuracy：±1℃
▣ Output watt：3600W (Max)
▣ Fuse：15A/240V , 2 pcs
Specification：
▣ Power input：85~240VAC±10%
▣ Power frequency：50~60HZ
▣ Work temperature：-10~55℃
▣ Work humidity：10~80%RH
▣ Storage temperature：-20~70℃
▣ Thermocouple：0~534℃
▣ Sample rate：0.1S
▣ Control accuracy：±1℃
▣ Output watt：3600W (Max)
▣ Fuse：15A/240V , 2 pcs
▣ Power frequency：50~60HZ
▣ Work temperature：-10~55℃
▣ Work humidity：10~80%RH
▣ Storage temperature：-20~70℃
▣ Thermocouple：0~534℃
▣ Sample rate：0.1S
▣ Control accuracy：±1℃
▣ Output watt：3600W (Max)
▣ Fuse：15A/240V , 2 pcs
More Info：
●Dual lines LED display.
●Fuse break indicator.
●PID auto temperature control.
●Auto/Manual Function.
●Selectable two thermocouple types.(J or K)
●Selectable two temperature scales.(℃ or ℉)
●Thermocouple break and inverse detect.
●Auto save the temperature value after adjustment.
●Soft start function could make humidity and extend heater life.
